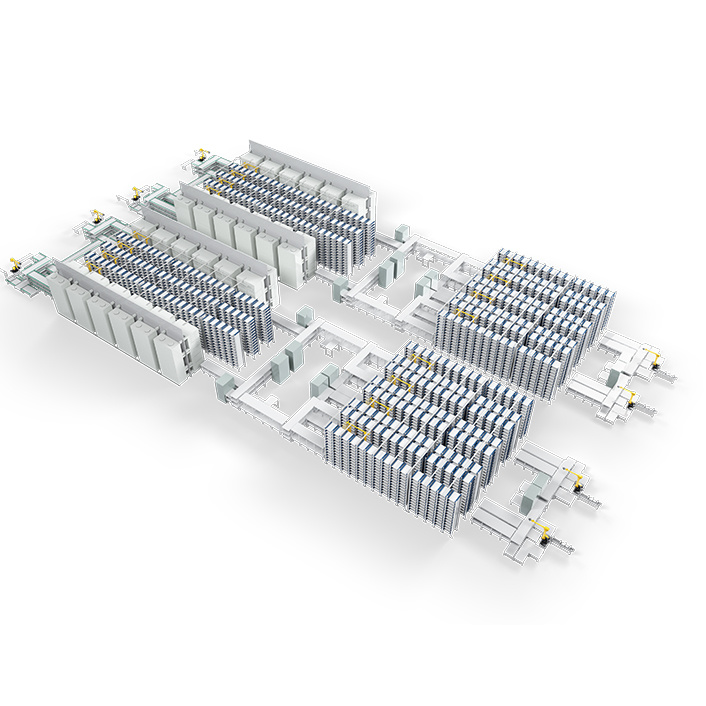

Detection probes assembly

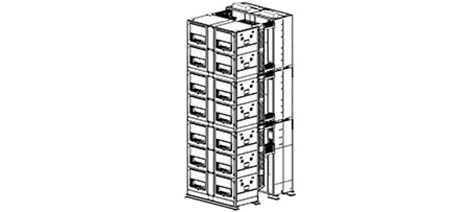

Square cell detection probes assembly: Modular design; compatible with multiple cells of the same side pole; design of high current probe module; a guarantee of ±3°C average temperature in the storage location; vacuum formation of proportional valve control mode is adopted, the formation can realize series connection and capacity grading can realize integrated machine mode; compatible with injection trays and restraint trays; full-automatic calibration design; CO and smoke heat alarm; fireproof armoring design of storage location; water-gas integrated fire protection; optional automatic changeover; optional automatic liquid drainage function; optional vacuum system cleaning.

Product name	Indicator	Technical parameters
Hard-cased square battery vacuum formation system (C-Y5)	Outline shape of formation cabinet	Customizable
	Number of channels for the complete machine	5V-120A-336CH/set
	Control mode	Single channel control
	Automatic rapid changeover and position adjustment of detection probes assembly
	Rapid change of detection probes assembly channel number	Compatible with 8CH, 10CH and 12CH
	Product compatibility	Battery of multiple specifications
	Automatic fluid drainage
	Automatic fire door
	Voltage control accuracy	±2mv
	Current resolution	1mA
	Current control accuracy	±0.05%FS, no abnormality within 180D after calibration
	Voltage resolution	0.1mV
	System charging conversion efficiency	≥65%
	System discharge feedback efficiency	≥55%
	Equipment optimization rate	≥99.85%
	Equipment fault rate	≤0.8%

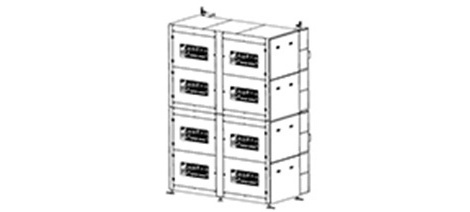

Square blade cell detection probes assembly：Modular design; compatible with multiple cells of different side pole; design of high current probe module; a guarantee of ±3°C average temperature in the storage location; vacuum formation of proportional valve control mode is adopted, the formation can realize series connection and capacity grading can realize integrated machine mode; compatible with injection trays and restraint trays; full-automatic calibration design; CO and smoke heat alarm; fireproof armoring design of storage location; water-gas integrated fire protection; optional automatic changeover; optional automatic liquid drainage function; optional vacuum system cleaning.

Product name	Indicator	Technical parameters
Blade battery precharging press	Outline shape of pre-charging cabinet	Customizable
	Automatic fire door
	Restraint tray
	Blade battery compatibility	Length 350-600 mm, thickness 10-30 mm, height 80-140 mm (customizable)
	Voltage accuracy	±2mv
	Current accuracy	±0.05%FS, no abnormality within 180D after calibration
	System charging conversion efficiency	≥65%
	System discharge feedback efficiency	≥55%
	Whole line yield	≥99.5%
	Channel fault rate	≤1%

Pouch formation fixture: Modular design; high-temperature pressure formation process; compatible with single- and double-side tabs emerging; design of high current probe module; a guarantee of ±2.5°C average temperature in the storage location; it can realize vertical high-temperature pressure formation and ordinary horizontal high-temperature pressure formation; servo motor pressurization, cylinder pressurization, two-section power wedge type over-pressurization.

Basic parameters	Parameter value
Single machine capacity	Customizable
System specifications	12A\20A\40A\60A\100A customizable
Discharge voltage range	1800~5000mV
Voltage test accuracy
Current measurement and control accuracy	±0.05%FS
Pressure control accuracy
Laminate temperature uniformity	±2.5℃

Pouch capacity detection probes assembly: Modular design; compatible with the design of single- and double-side tabs emerging detection probes assembly; high-current probe module design; a guarantee of 3°C average temperature in the storage location;full-automatic calibration design; CO and smoke heat alarm; fireproof armoring design of storage location; water-gas integrated fire protection.

Product name	Indicator	Technical parameters
Pouch cell capacity grading press cabinet (F-S)	Outline shape of pre-charging cabinet	Customizable
	Automatic fire door
	Adopt the form of stacking, and two trays can enter and leave the storage location at the same time
	Pouch cell compatibility	Length (excluding tab): 150-450 mm, thickness 3-15 mm, width: 70-150 mm (customizable)
	Voltage accuracy	±2mv
	Current accuracy	±0.05%FS, no abnormality within 180D after calibration
	System charging conversion efficiency	≥65%
	System discharge feedback efficiency	≥55%
	Whole line yield	≥99.5%
	Channel fault rate	≤1%

Cylindrical detection probes assembly: Modular design; compatible with 18650/21700; customizable 4680 detection probes assembly; the average temperature of storage location can be guaranteed to be 3°c; full-automatic calibration design; CO and smoke heat alarm; fireproof armoring design of storage location; water-gas integrated fire protection; optional integral cavity vacuum formation of proportional valve control mode; optional self-contained heating function.

Product name	Indicator	Technical parameters
Cylindrical battery high-temperature vacuum formation press cabinet (L-T)	Outline shape of formation cabinet	Customizable
	Hot air circulation structure	The temperature in the cabinet can be arbitrarily set at 50°C~85°C, the control accuracy is ±2°C, and the temperature uniformity of the storage location is ±2°C
	Automatic fire door
	Product compatibility	18650/21700
	Charging efficiency	≥65%
	Efficiency of energy feedback to power grid	≥55%
	Whole line yield	≥99.5%
	Whole line fault rate	≤1%
